1. Product
Structure and applicability
1.
The

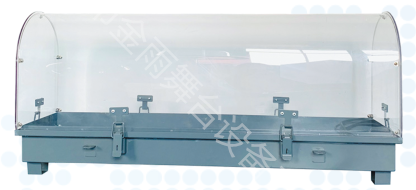

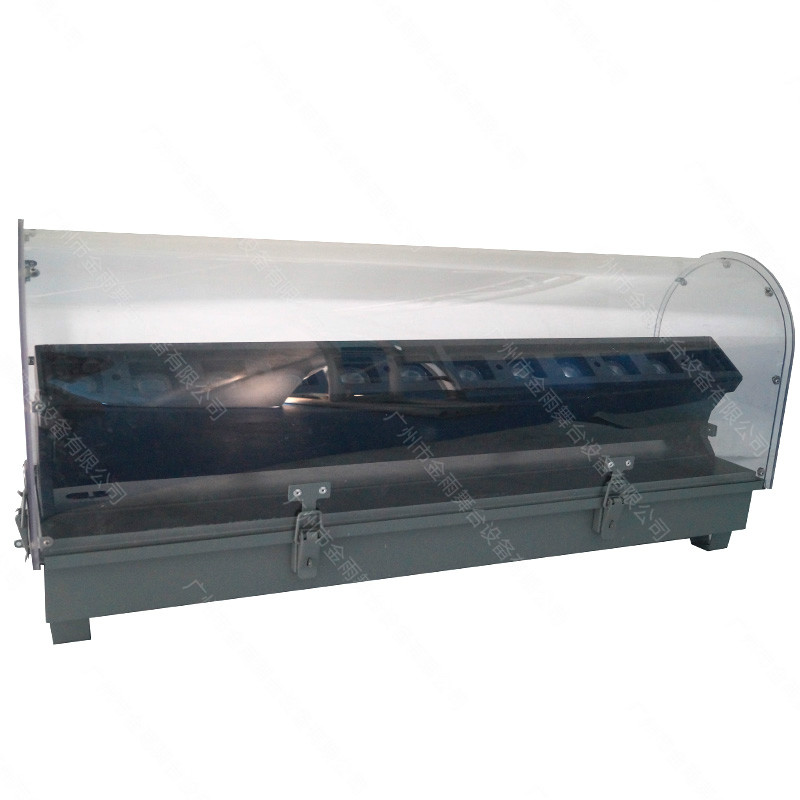

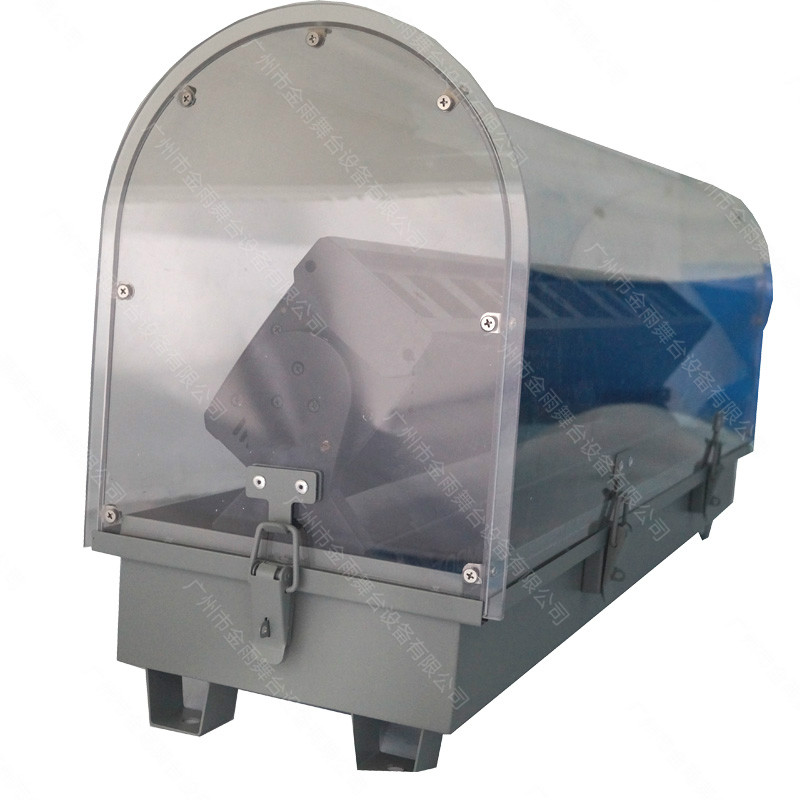

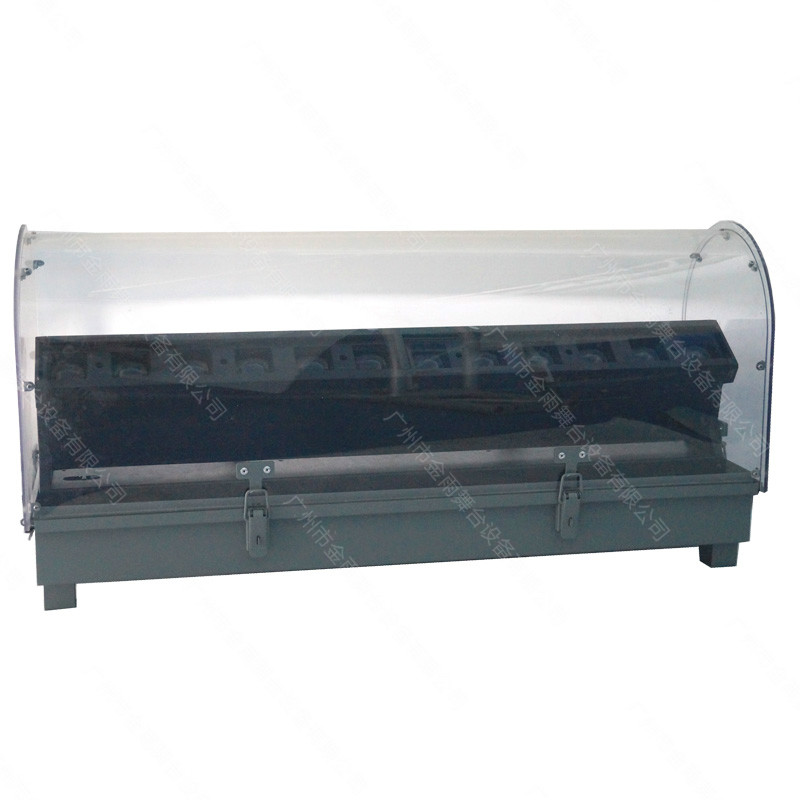

main structure of this Linear LED rain cover is composed of two parts: a
transparent cover and a stainless-steel base.
2.
Product
applicability: Long strip laser light / strip LED (eight or six spotlights) moving
head light outdoor installation.
2. Product Features
※ 1. The
base is made of stainless steel to prevent corrosion.
※ 2. The transparent cover uses PETG new
material, with high transparency, can maintain no discoloration and yellowing
for five years, and is suitable for long-term outdoor installation in high and
low temperature environments all over the world.
※ 3. With
dust proof, rain proof, dehumidification, anti-icing, lamp cooling function,
protect the function of the LED lamp.
3.
Technical Specifications
Usually, when the moving head
light is turned on, when the temperature higher than 45℃, the function of the lamp and the
life of the lamp will be seriously damaged. By using our rain cover, the
ambient temperature inside the enclosure is always maintained below 45℃, even in high temperature environments. Effectively protect the
luminaire from damage and extend its life!
Power |
300W |
Waterproof level |
IP65 |
External dimensions |
L1220*W230*H460 |
Internal dimensions |
L960*W220*H140 |
Transparent cover size |
1010mm |
Weight |
Net 19KG
Gross 24KG |
Power supplies |
220V-240V (optional 110V) |
Years of use |
3 years |
(Deutsch Version)
1. Produkt Struktur und Anwendbarkeit
1.
Die Hauptstruktur der linearen LED-Abdeckungbesteht aus zwei Teilen: einer
transparenten Abdeckung und einem Edelstahlsockel.
2.
Produkt-Anwendbarkeit: Langstreifen-Laserlicht /
Streifen LED (acht oder sechs Strahler) Moving head lights Ausseninstallation.
2.Produkteigenschaften
2.1 Das Basisgehaeuse
ist aus Edelstahl fuer den Korrosionsschutz gefertigt.
2.2 Die
transparente Abdeckung verwendet neues Material PETG, mit hoher Transparenz,
kann keine Verfaerbung fuer fuenf Jahre aufrechterhalten und nicht vergilbt, es
eignet sich fuer langfristige Ausseninstallationen in Hoch- und
Tieftemperaturumgebungen auf der ganzen Welt.
2.3 Mit staubdicht, Wasserdicht,
Entfeuchtung, Anti-Vereisung, Waermeableitungfunktion zum Schutz von Lampen.
3. Technische Daten
Im
Allgemeinen, wenn die bewegliche Kopflampe eingeschaltet ist, wird die Funktion
der Lampe und die Lebensdauer der Lampe ernsthaft beschaedigt, wenn die
Temperatur hoeher als 45 ℃. Bei Verwendung unserer Regenabdeckung bleibt die
Umgebungstemperatur in der Abdeckung auch bei Hochtemperatur immer unter 45 ℃,
schuetzt die Lampen effektiv vor Beschaedigungen und verlaengert die
Lebensdauer!
Leistung |
300W |
Wasserdichtes Niveau |
IP65 |
Externe Abmessungen |
L1220*W230*H460 |
Interne Abmessungen |
L960*W220*H140 |
Transparente Deckflaeche |
1010mm |
Gewicht |
Netto 19KG Brutto 24KG |
Power Versorgung |
220V-240V (optional 110V) |
Jahrelange Nutzung |
3 Jahre |
