PRODUCTS
JY-T 1500 big size spherical model Moving Head Lights Rain Cover



1.             Product Structure and applicability

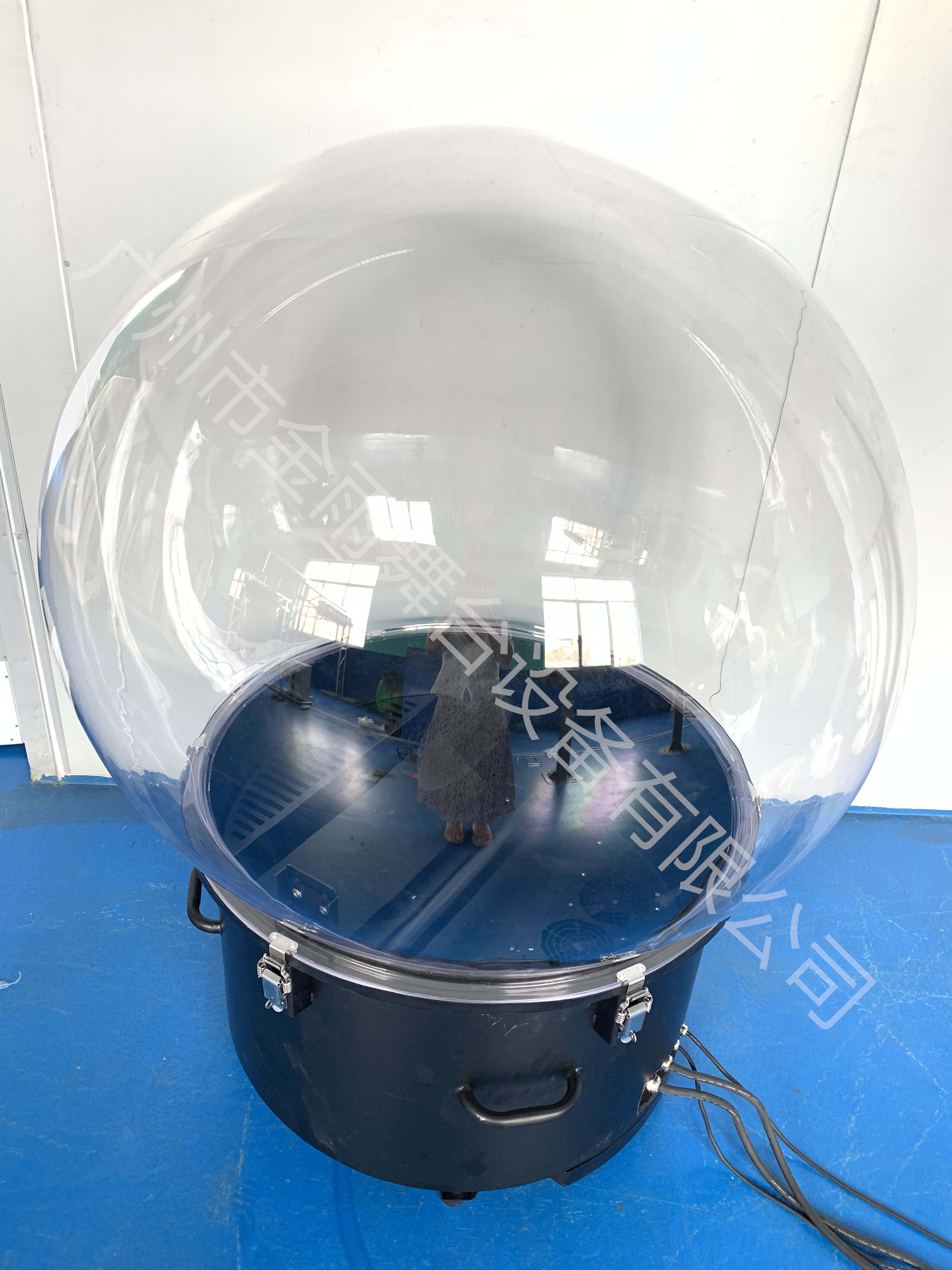

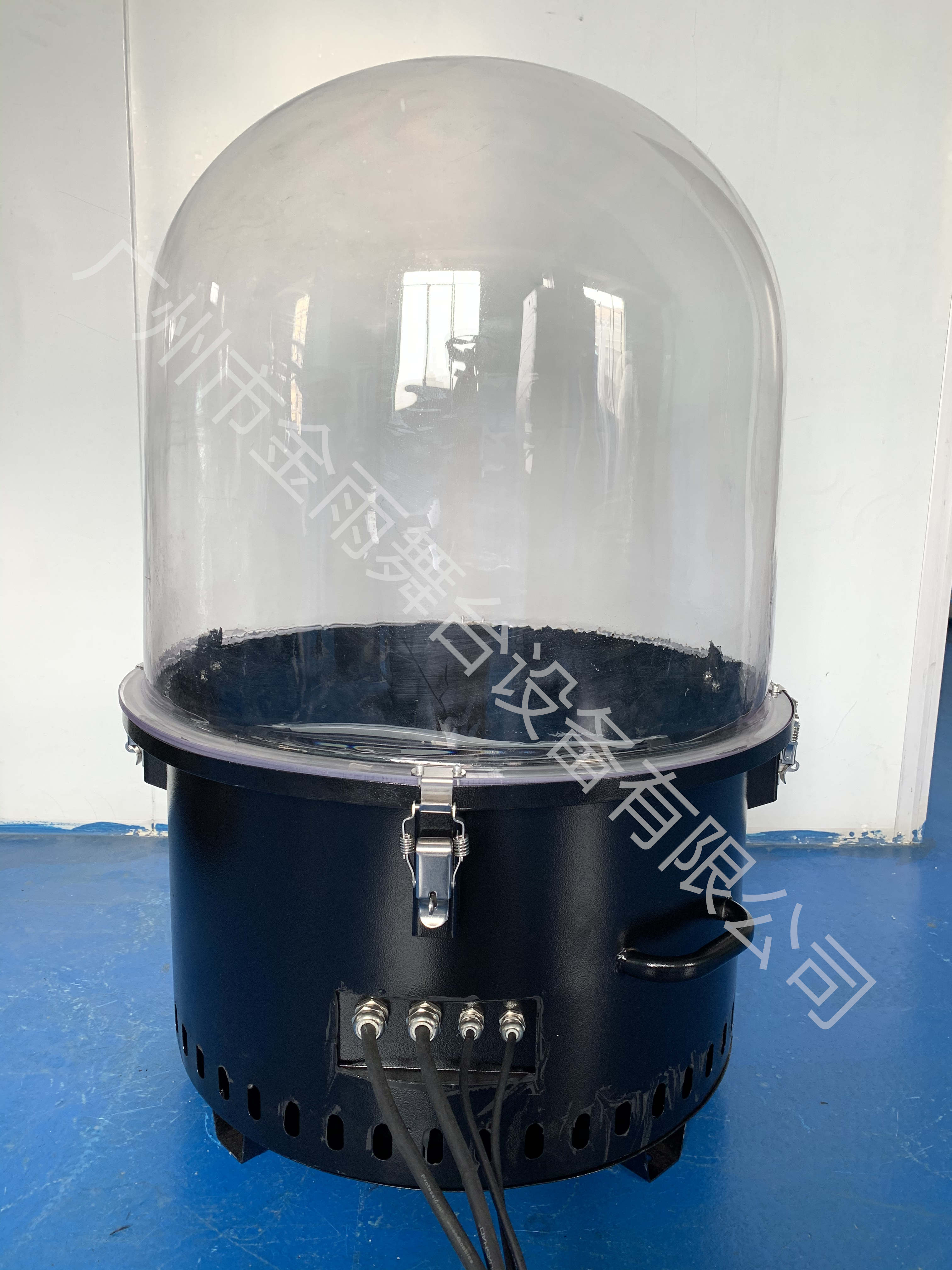

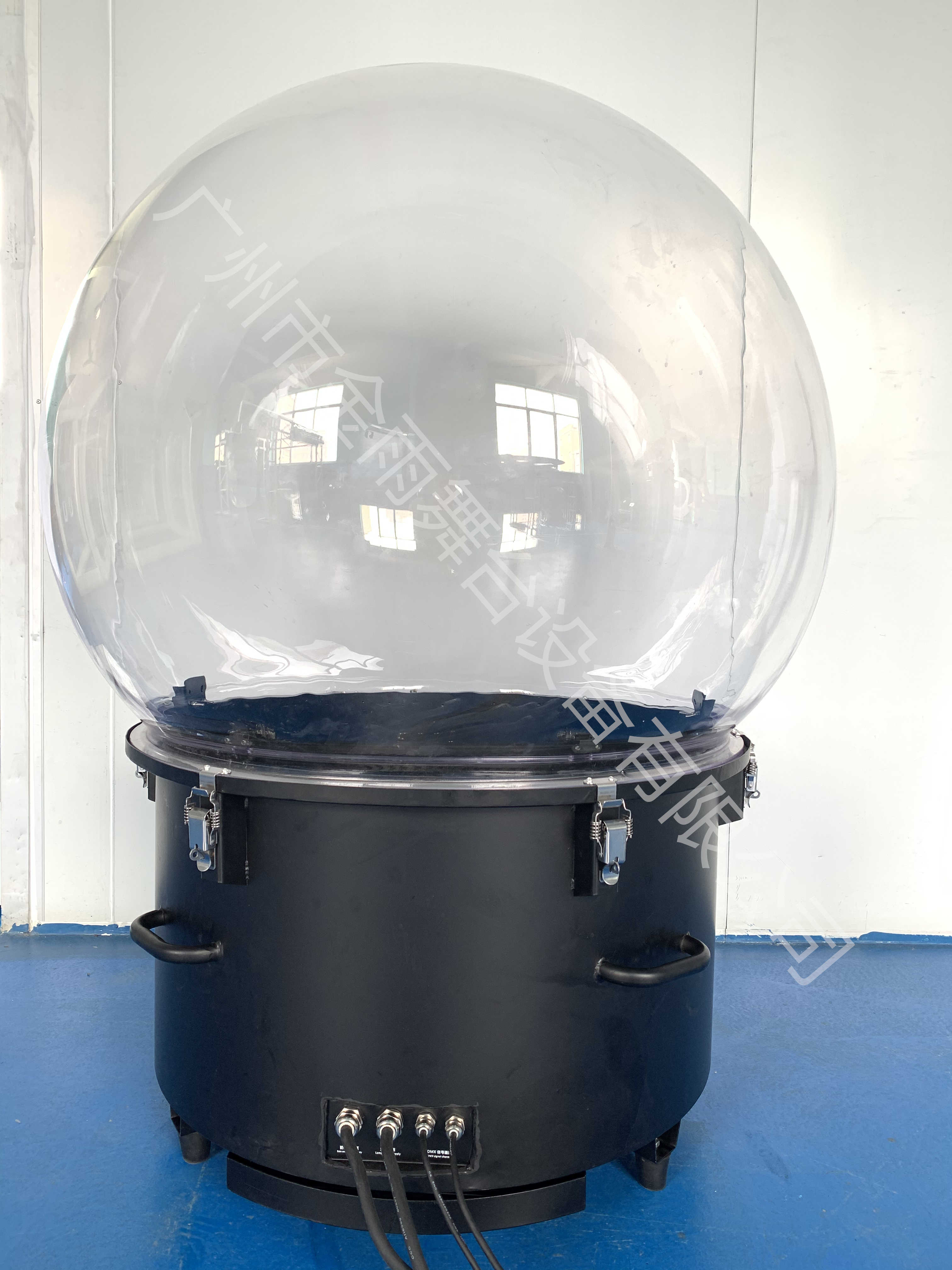

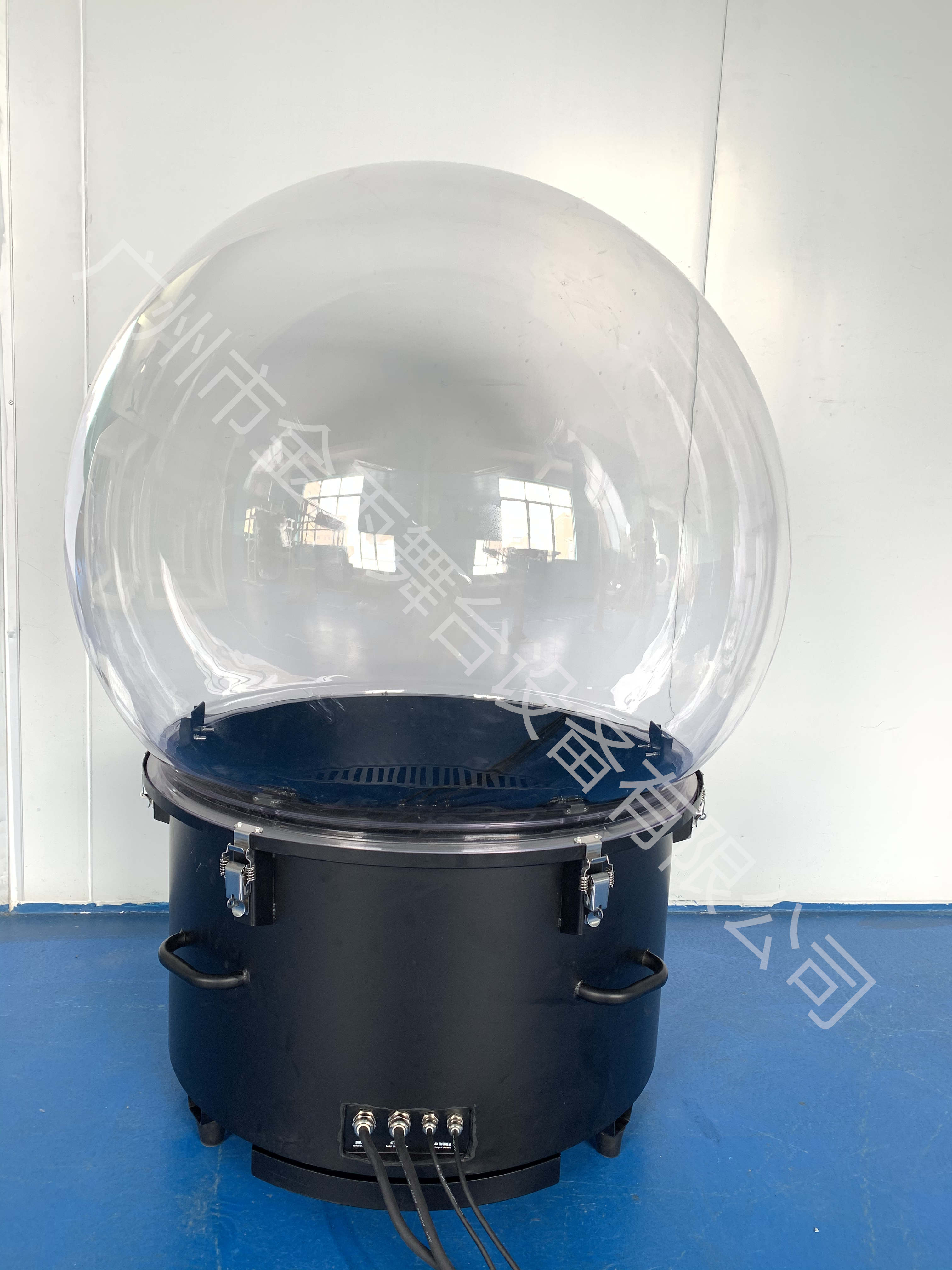

1.1             The main structure of this Rain cover is composed of two parts: a transparent cover and a stainless-steel base.

1.2             Suitable for outdoor installation of 1500W spot/wash/profile Moving head lights



2.             Product Features

2.1             The base housing is made of stainless steel for corrosion protection.

2.2             The transparent cover uses new material PETG, with high transparency, can maintain no discoloration for five years and does not yellowing, and is suitable for long-term outdoor installation in high and low temperature environments all over the world.

2.3             With dust proof, rain proof, dehumidification, anti-icing, heat dissipation function for protecting lamps.





3.             Technical Specifications

Generally, when the moving head lamp is turned on, the function of the lamp and the life of the lamp will be seriously damaged when the temperature higher than 45 . In the case of using our rain cover, the ambient temperature in the cover is always maintained below 45 even in the high temperature environment, effectively protect the lamps from damage and extend the life!



3.1              Heat operation control

When the temperature reaches the heating control point, the heating device will automatically run. When the temperature inside the box is lower than the heating control point, the heating device stops running.

parameter

default &#118alue

Measurement unit

description

Heating

control point

20

When the temperature inside the box is higher than 20 ℃, the fan inside the box automatically runs to dissipate heat.

3.2            Power off control

parameter

default &#118alue

Measurement unit

description

Power off

control point

55

When the temperature inside the box is higher than 55 ℃, the power supply automatically cuts off the power to protect the luminaire from damage and prolongs the life.



3.3            Technical Parameters

Power supplies

220V-240V (optional 110V)

Power

300W

Size

L920*W920*H1240

Plastic case

Φ920mm  H800mm

Base size

Inside Φ870mm  Outside Φ920mm  H440mm

Weight

Net: 52KG  Gross: 55KG

Packing size

93*93*126cm

Waterproof level

IP65

Years of use

3 Years

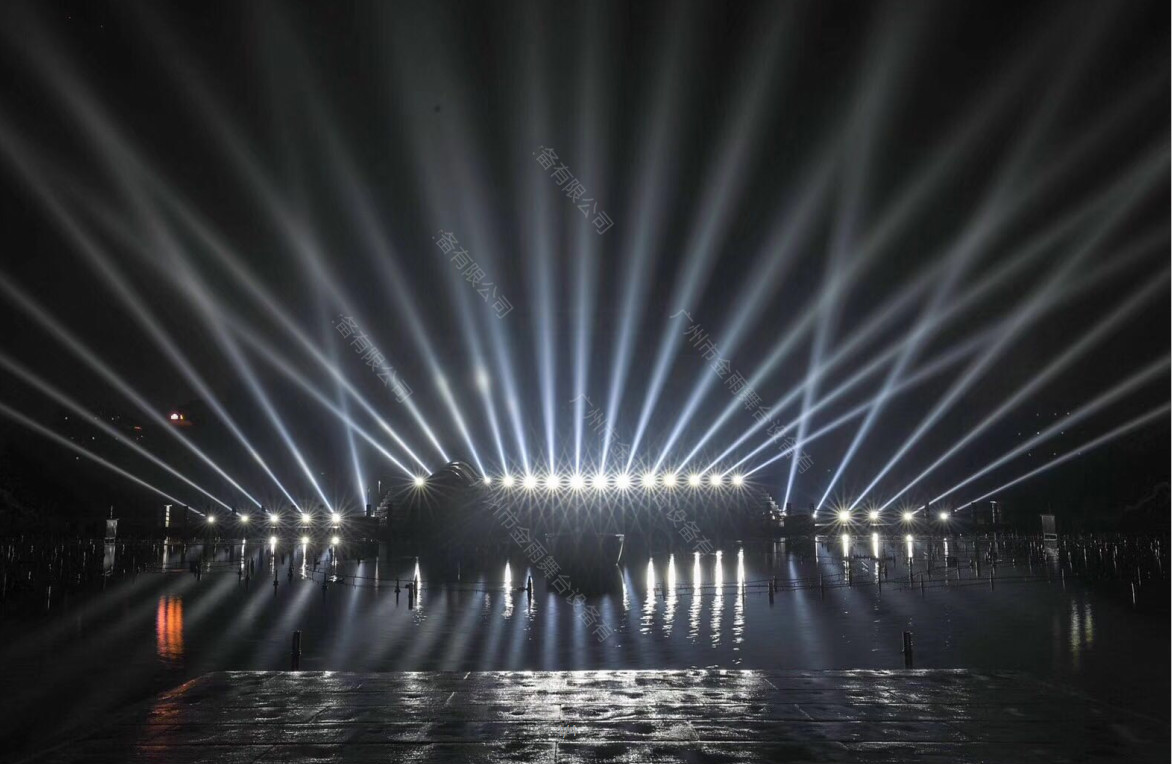

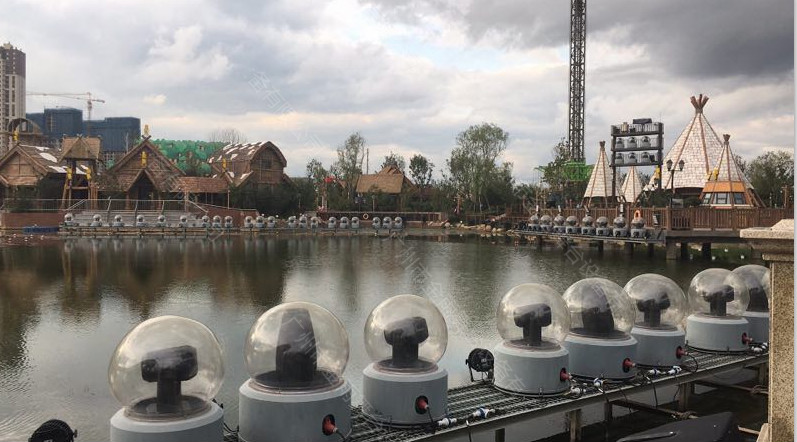

Projects photos





(Deutsch Version)

1.             Produktstruktur und Anwendbarkeit


1.1             Die Hauptstruktur dieser Regenabdeckung besteht aus zwei Teilen: einer transparenten Abdeckung und einem Edelstahlsockel.

1.2             Geeignet fuer den Ausseneinsatz von 1500W Spot/Wash/Profile Moving Head lights



2.             Produkteigenschaften

2.1             Das Basisgehaeuse ist aus Edelstahl fuer den Korrosionsschutz gefertigt.

2.2           Die transparente Abdeckung verwendet neues Material PETG, mit hoher Transparenz, kann keine Verfaerbung fuer fuenf Jahre aufrechterhalten und nicht vergilbt, es eignet sich fuer langfristige Ausseninstallationen in Hoch- und Tieftemperaturumgebungen auf der ganzen Welt.

2.3             Mit staubdicht, Wasserdicht, Entfeuchtung, Anti-Vereisung, Waermeableitungfunktion zum Schutz von Lampen.





3.             Technische Daten

Im Allgemeinen, wenn die bewegliche Kopflampe eingeschaltet ist, wird die Funktion der Lampe und die Lebensdauer der Lampe ernsthaft beschaedigt, wenn die Temperatur hoeher als 45 ℃. Bei Verwendung unserer Regenabdeckung bleibt die Umgebungstemperatur in der Abdeckung auch bei Hochtemperatur immer unter 45 ℃, schuetzt die Lampen effektiv vor Beschaedigungen und verlaengert die Lebensdauer!



3.1             Waermebetriebssteuerung

Wenn die Temperatur den Heizkontrollpunkt erreicht, wird das Heizgeraet automatisch ausgefuehrt. Wenn die Temperatur im Inneren des Kastens niedriger als der Heizkontrollpunkt ist, laeuft das Heizgeraet nicht mehr.

Parameter

Standardwert

Masseinheit

beschreibung

heizung

Kontrollpunkt

20

Wenn die Temperatur im Inneren der Box hoeher als 20 ℃ ist, laeuft der Luefter in der Box automatisch, um Waerme abzuleiten.


3.1           Ausschaltens Steuerung

Parameter

Standardwert

Masseinheit

beschreibung

Ausschalten

Kontrollpunkt

55

Wenn die Temperatur im Inneren der Box hoeher als 55 ℃ ist, schaltet das Netzteil automatisch die Stromversorgung ab, um die Leuchte vor Beschaedigungen zu schuetzen und verlaengert die Lebensdauer.



3.3           Technische Parameter

Input

220V-240V (optional 110V)

Leistung

300w

Groesse

L920* W920* H1240

Packung Gehaeuse

Bei 920mm H800mm

Basisgroesse

Innennr.870mm Aussen nr. 920mm H440mm

Gewicht

Netto: 52KG Brutto: 55KG

Verpackungsgroesse

93* 93 * 126cm

Wasserdichtes Niveau

IP65

Jahrelange Nutzung

3 Jahre

<
