1. Product Structure

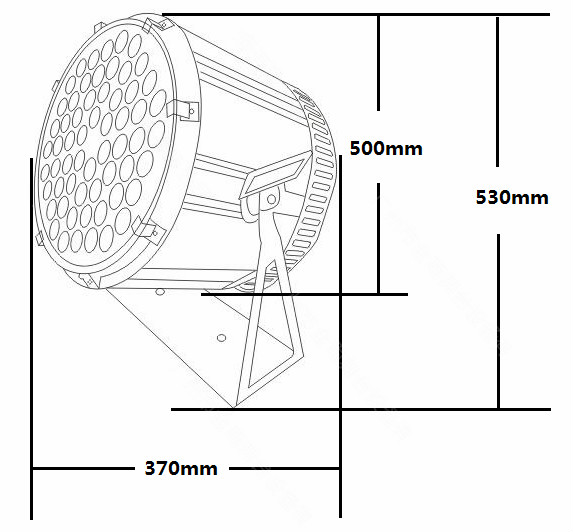

Dimensions Figure
2.
Product parameters
|
Power |
650W （each LED 10W*60 RGBW mixed LED units） |
|
Range |
300m |
|
Dimensions |
L370mm*W500mm*H530mm |
|
Weight |
Net 26KG Gross 30KG |
|
Input |
220V |
|
Waterproof level |
IP66 |
3.
Product Features
※ 3.1 One JY-Powerful long-range
LED light can compare with 15 ordinary 54 pieces!
※ 3.2 Applicable scenes: mountain color, remote surface light, large
water show lake surface and so on.

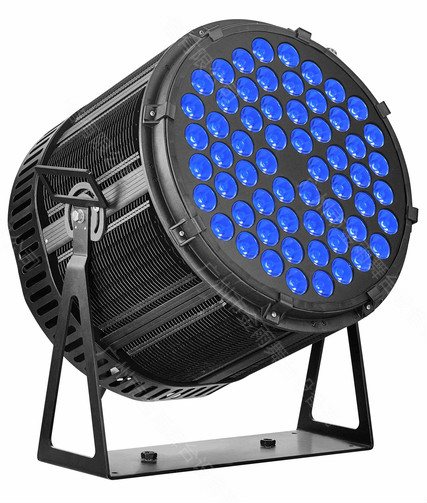

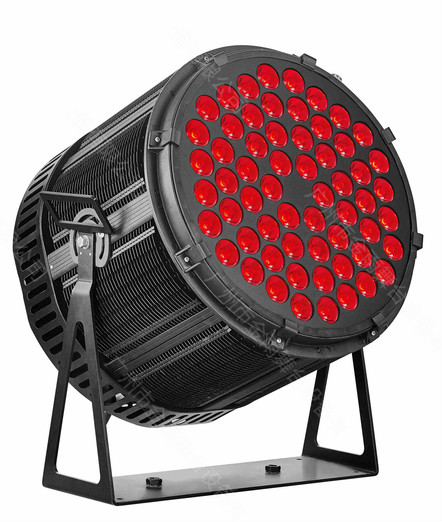

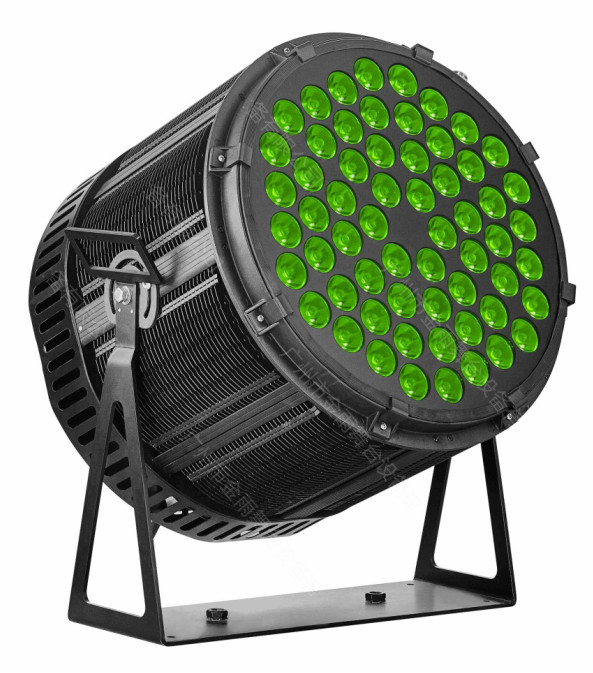

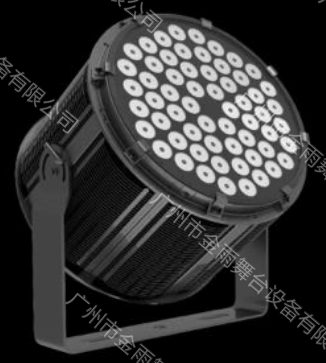

Product picture
|
|
||||
|
Show panel
key function description: |
|
|||
|
keys |
Description |
Description of the
function |
|
|
|
[MENU] |
Feature selection |
DMX console/color selection/gradient/pulse/jump/voice/manual dimming |
|
|
|
[UP] |
Select up |
Moving up |
|
|
|
[DOWN] |
Select down |
Moving down |
|
|
|
[ENTER] |
Confirm |
All settings ＆#118alues are saved after pressing this key, and the next boot
is for the current interface function |
|
|
|
Display panel
functionality |
|
|||
|
A001～A512 |
DMX console mode 1, adding and subtracting address code ＆#118alues by up and
down keys |
|
||
|
d001～d512 |
DMX console mode 2, adding and subtracting address code ＆#118alues by up and
down keys |
|
||
|
r000～r255 |
Manual dimming R, by the upper and lower keys to change the brightness of
red light, the larger the ＆#118alue, the brighter |
|
||
|
G000～G255 |
Manual dimming G, through the upper and lower keys to change the
brightness of green light, the larger the ＆#118alue, the brighter |
|
||
|
b000～b255 |
Manual dimming B, by the upper and lower keys to change the brightness of
the blue light, the larger the ＆#118alue, the brighter |
|
||
|
u000～u255 |
Manually dim W, by changing the blu-ray brightness by the upper and lower
keys, the larger the ＆#118alue, the brighter |
|
||
|
FH01～FH99 |
strobe, changing the speed quickly by the upper and lower keys, the
larger the number, the faster |
|
||
|
CL01～CL15 |
Select colors and select different color combinations by using the up and
down keys |
|
||
|
CC01～CC16 |
Jump, change the speed by the upper and lower keys, the larger the
number, the faster |
|
||
|
DE01～dE16 |
Gradient, changes quickly by the upper and lower keys, the larger the
number, the faster |
|
||
|
CP01～CP16 |
Pulse change, through the upper and lower keys change the speed is fast,
the larger the ＆#118alue the faster |
|
||
|
SU01～SU02 |
Voice control, through the up and down key selection mode, SU01 voice
control strobe, SU02 voice control jump |
|
||
|
A001 channel
table |
|
|||
|
passage |
Channel ＆#118alue |
Description of the function |
|
|
|
CH1 |
0-255 |
Total dimming |
|
|
|
CH2 |
0 |
No strobe |
|
|
|
1-255 |
Strobe (from slow to fast), the higher the ＆#118alue, the
faster the speed |
|
||
|
CH3 |
0 |
Dimming mode (no self-walking effect) |
|
|
|
1-62 |
Color selection (color controlled by CH4) |
|
||
|
63-124 |
Jump (speed controlled by CH4) |
|
||
|
125-186 |
Gradient (speed controlled by CH4) |
|
||
|
187-249 |
Pulse change (speed controlled by CH4) |
|
||
|
250-255 |
Voice control (mode controlled by CH4) |
|
||
|
CH4 |
0-255 |
Color selection/color change speed (higher ＆#118alue
faster)/voice mode 1 mode 2 selection |
|
|
|
CH5 |
0 |
The red light is off |
|
|
|
1-255 |
Red light adjusts brightness (dark to bright) |
|
||
|
CH6 |
0 |
The green light is off |
|
|
|
1-255 |
Green light adjusts brightness (dark to bright) |
|
||
|
CH7 |
0 |
Blu-ray off |
|
|
|
1-255 |
Blue light adjusts brightness (dark to bright) |
|
||
|
CH8 |
0 |
The white light is off |
|
|
|
1-255 |
White light adjusts brightness (dark to bright) |
|
||
|
When the DMX signal is
received, the first decimal point of the digital tube flashes, otherwise it
is not received. |
|
|||
|
d001 channel
table |
|
|||
|
passage |
Channel ＆#118alue |
Description of the
function |
|
|
|
CH1 |
0-255 |
Total dimming |
|
|
|
CH2 |
0 |
The red light is off |
|
|
|
1-255 |
Red light adjusts brightness (dark to bright) |
|
||
|
CH3 |
0 |
The green light is off |
|
|
|
1-255 |
, Green light adjusts brightness (dark to bright) |
|
||
|
CH4 |
0 |
Blu-ray off |
|
|
|
1-255 |
Blue light adjusts brightness (dark to bright) |
|
||
|
CH5 |
0 |
The white light is off |
|
|
|
1-255 |
White light adjusts brightness (dark to bright) |
|
||
|
CH6 |
0 |
No strobe |
|
|
|
1-255 |
Strobe (from slow to fast), the higher the ＆#118alue, the
faster the speed |
|
||
|
CH7 |
0 |
Dimming mode (no self-walking effect) |
|
|
|
1-62 |
Color selection (color controlled by CH8) |
|
||
|
63-124 |
Jump (speed controlled by CH8) |
|
||
|
125-186 |
Gradient (speed controlled by CH8) |
|
||
|
187-249 |
Pulse change (speed controlled by CH8) |
|
||
|
250-255 |
Voice control (mode controlled by CH8) |
|
||
|
CH8 |
0-255 |
Color selection/color change speed (higher ＆#118alue
faster)/voice mode 1 mode 2 selection |
|
|
|
When the DMX signal is
received, the first decimal point of the digital tube flashes, otherwise it
is not received. |
|
|||
|
Master-Slave
settings: |
|
|||
|
2 or more of the same
lamps are connected with a 3-core signal line, any one is set for the host
(color selection/gradient/pulse/jump/voice control/manual dimming), and the
other luminaires are set to A001 or d001 |
|
|||
|
|
|
|||
